ARM based MacPro Concept


Design exploration what a future MacPro might look like. Part II

Some of you have seen my Modular Mac Pro design Concept post.
Now, let’s take a look how power-efficient CPU’s will change design of a MacPro.

There’s been a lot of talk of Apple ditching Intel for ARM.
I think Apple will switch, and many others will follow.

ARM Advantages:

optimized for performance/watt
power-efficient
cooler
fully scalable
smaller
cheaper
custom CPU design

What does it mean?

significantly smaller enclosure
increase computing power by adding more CPUs
increase & tweak important performance (custom Chip design)
cheaper CPUs – higher profit
smaller, lighter, quieter, cooler (less heat)”Greener” (Environment)

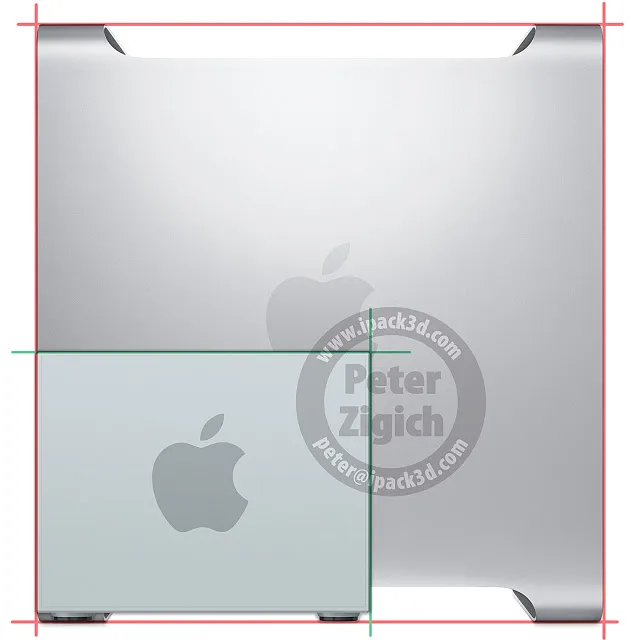

Size comparison with current MacPro W x D x H - 230mm x 280mm x 220mm

Size comparison with current MacPro
W x D x H – 230mm x 280mm x 220mm

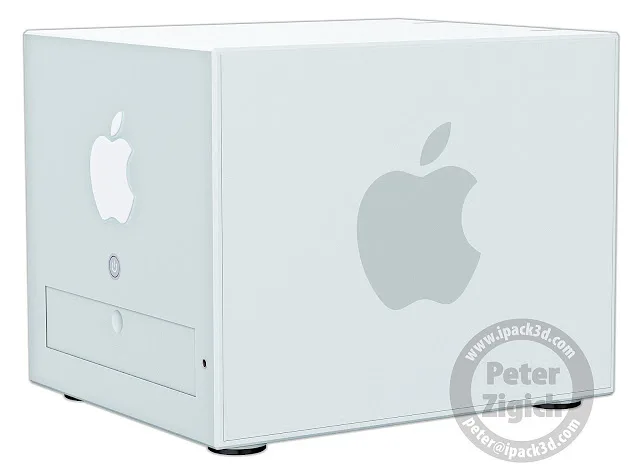

Aluminum enclosure with removable side panel 3/4 View Perspective

Aluminum enclosure with removable side panel
3/4 View Perspective

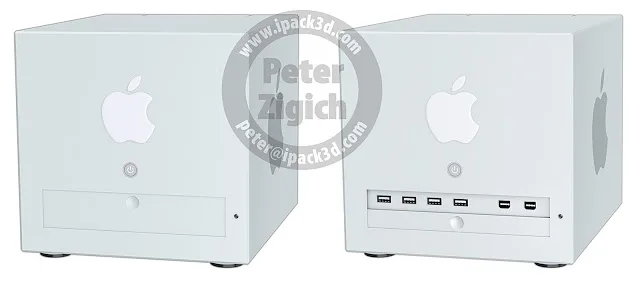

Front View Slide up/down front door to access USB3 & Thunderbolt ports

Front View
Slide up/down front door to access USB3 & Thunderbolt ports

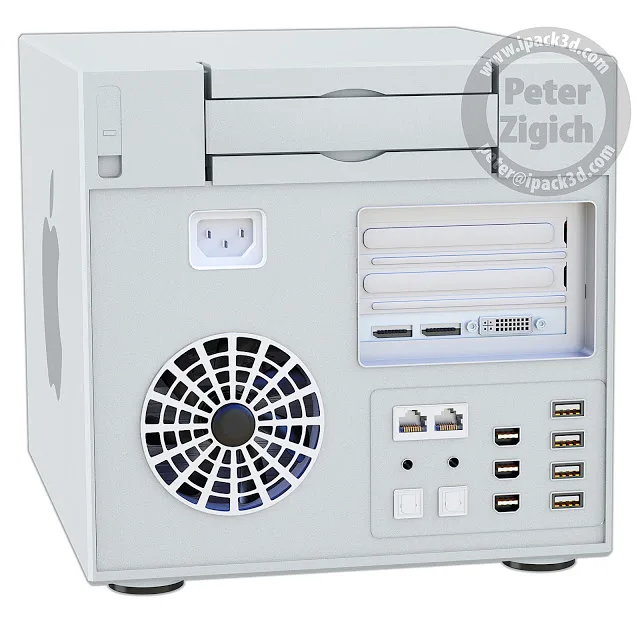

Back View USB3, Thunderbolt, Ethernet, Optical In & Out, Mic, Speaker, Power ports + 3 PCI slots

Back View
USB3, Thunderbolt, Ethernet, Optical In & Out, Mic, Speaker, Power ports + 3 PCI slots

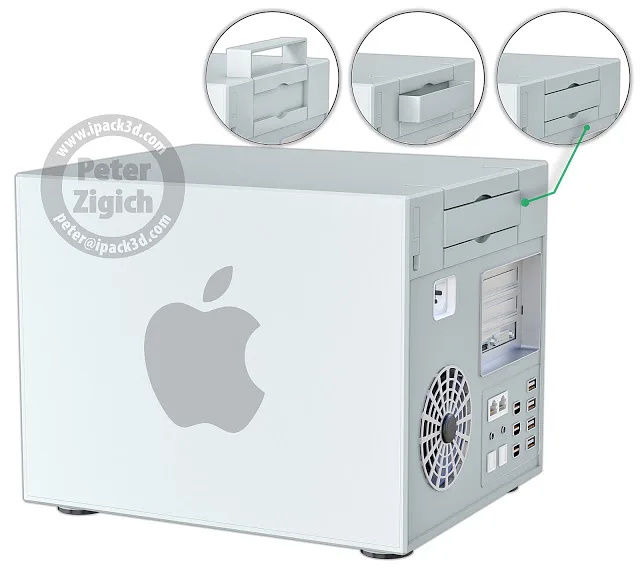

Folding Snap & Lock Handle

Folding Snap & Lock Handle

Additional disk storage – external Thunderbolt enclosures

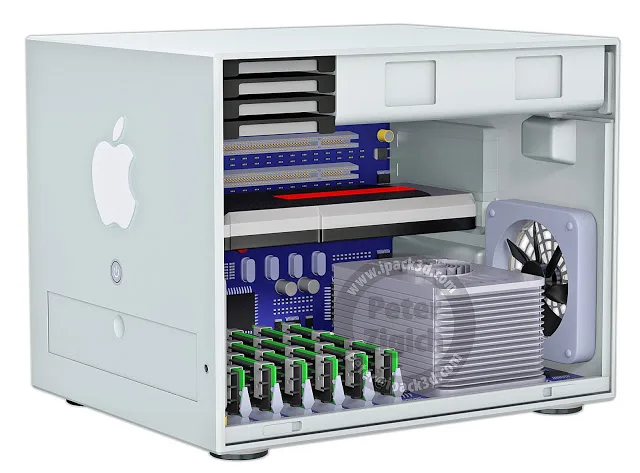

Removable side panel & Slide out Tray 4 HDD, 6 RAM slots, 3 PCI slots

Removable side panel & Slide out Tray
4 HDD, 6 RAM slots, 3 PCI slots



Version 1a
Custom Apple designed ARM CPU A10

2 CPUs on a Daughterboard Card.
Each Processor has 4 cores for a total 8 cores per Card.
4 Cards for a maximum of 8 CPUs (32 Cores).

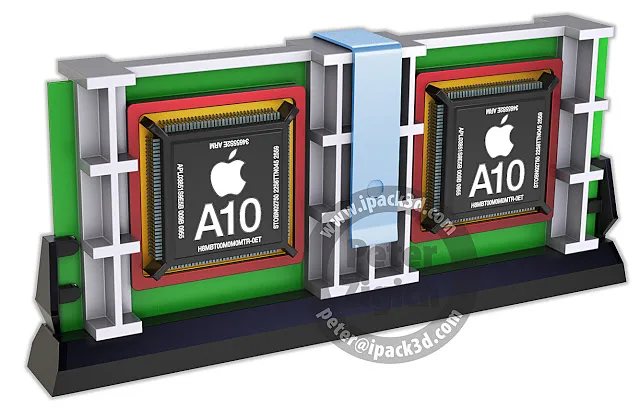

CPU Daughterboard Card 2 Processors on Card 4 Cores each. Total of 8 Cores per Card

CPU Daughterboard Card
2 Processors on Card 4 Cores each. Total of 8 Cores per Card

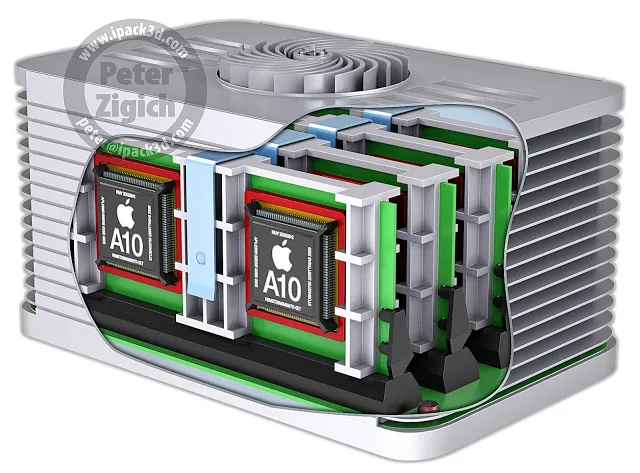

Heat Sink Cross Section Up to 4 Cards - total of 8 CPUs (32 Cores)

Heat Sink Cross Section
Up to 4 Cards – total of 8 CPUs (32 Cores)





MacPro ARM CPU Workstation with Tray Out Total of 8 CPUs (32 Cores) + 6 Memory Slots

MacPro ARM CPU Workstation with Tray Out
Total of 8 CPUs (32 Cores) + 6 Memory Slots

Version 1b
How about Intel Inside?

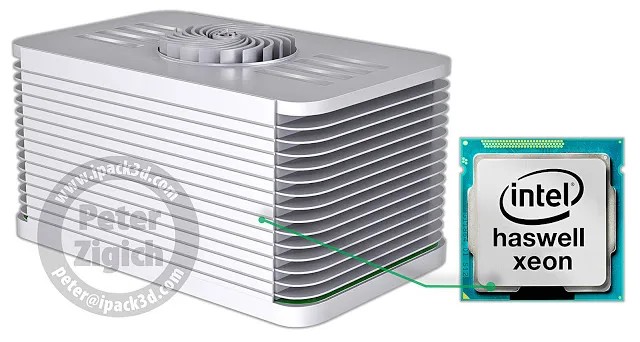

Maybe Intel can come up with super efficient Haswell Xeon CPU 2 Xenon CPUs can fit in the Heat Sink

Maybe Intel can come up with super efficient Haswell Xeon CPU
2 Xenon CPUs can fit in the Heat Sink

It’s impossible to ignore Intel. They are working on energy efficient CPUs.
Is it possible to put Haswell or Broadwell Xeons in such a small enclosure?
Liquid cooling, maybe.
Intel will do their best to keep Apple happy.

Version 2
Custom Apple designed ARM CPU A10

Combined CPU & RAM Module.
CPU Daughterboard Card comes with 2 CPUs and integrated 16GB RAM.
6 Cards for a maximum of 12 CPUs (48 Cores) and 96GB RAM

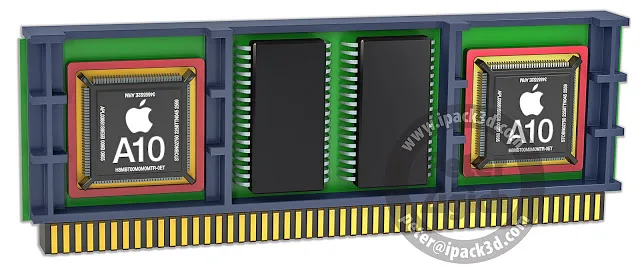

Second Version of CPU Daughterboard Card 2 CPUs on Card (4 Cores each) with 16GB embedded RAM. Total of 8 Cores per Card

Second Version of CPU Daughterboard Card
2 CPUs on Card (4 Cores each) with 16GB embedded RAM. Total of 8 Cores per Card

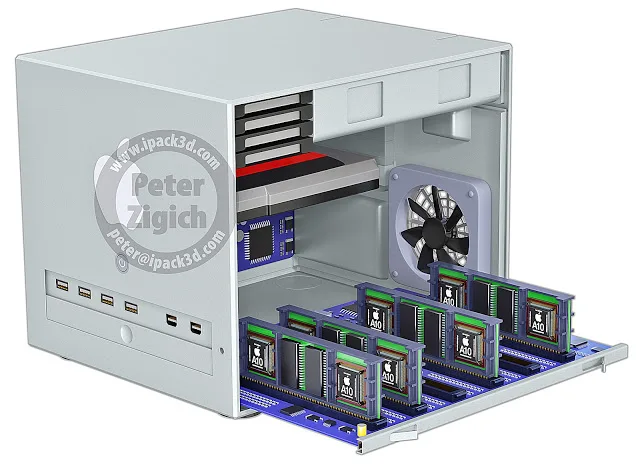

MacPro Workstation with 6 Daughterboard Card Slots Total of 12 CPUs (48 Cores) + 96 GB RAM

MacPro Workstation with 6 Daughterboard Card Slots
Total of 12 CPUs (48 Cores) + 96 GB RAM

Alternative aluminium enclosure

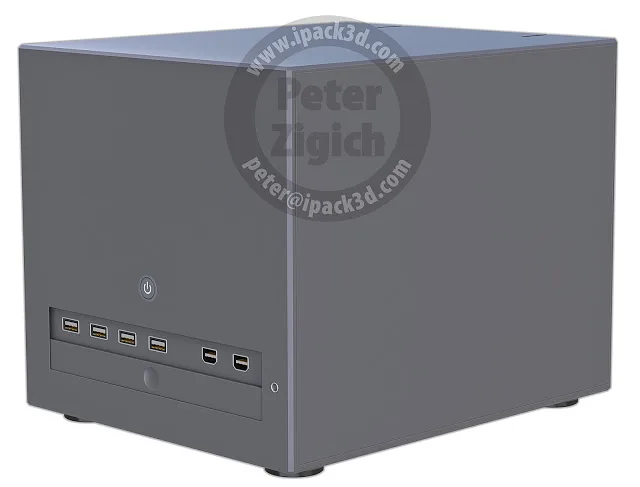

Darker aluminum enclosure Anodized Aluminium Color (same as iPhone 5)

Darker aluminum enclosure
Anodized Aluminium Color (same as iPhone 5)

MacPro Cube

If Apple creates custom GPU (shorter, less heat), enclosure
dimensions could shrink even more.

MacPro Cube with a footprint of a Mac Mini.  200mm x 200mm x 200mm Cube.
This will be ideal “Made in USA” Apple Computer.

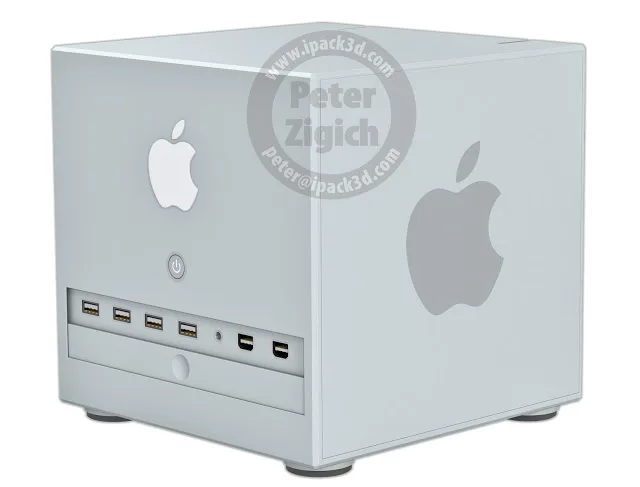

Apple Mac Pro Cube with custom (smaller) GPU, 200mm Cube

Apple Mac Pro Cube
with custom (smaller) GPU, 200mm Cube

Competition

I’m sure there are dozen other companies interested in creating their own ARM based PCs.
Just to name few:
Microsoft – Windows 8
Amazon – Linux
NVIDIA – Linux
AMD – Linux / Windows 8
Google – Chrome OS (Linux) if they are serious about Chrome OS
Samsung – Linux / Windows 8 / desktop Tizen OS???
Oracle / Sun – Solaris
Intel – Linux / Windows, certainly not using ARM CPUs
+ all the other PC makers: Dell, HP, Acer, Lenovo, Sony, Toshiba, etc.




MacPro-15



other companies interested in creating their own ARM based PCs, competition






This is my vision of the next MacPro. Tell me what you think.
